Have you ridden in the rain and suddenly noticed your motorcycle's dashboard fogging up or the numbers dancing erratically? That's every motorcyclist's nightmare. Instead of waiting for your speedometer to give up and break down, learn how to check its water resistance today with these simple techniques.
For a motorcyclist, the speedometer is much more than a speed indicator: it's the communication window with the machine. It's exposed to wind, mud, and even high-pressure water jets from the washer. If its waterproofing is not adequate, the consequences can range from simple fogging that prevents reading to a short circuit that completely disables the instrument.
Today, we'll explain, in a simple way, how to verify if your speedometer is truly prepared to withstand the elements.
1. First Things First: Understand the IP Protection Rating
Before we get started, it's essential to understand the concept of the IP (Ingress Protection) Rating.
It's an international standard that measures resistance to dust and water. It's written as IPXX, where the first digit indicates protection against solids (0-6) and the second against liquids (0-9K).
For a motorcycle speedometer, the most common ratings are:
IP65: Protected against dust and low-pressure water jets (ideal for daily rain).
IP66: Protected against dust and powerful water jets (withstands pressure washing).
IP67: Protected against dust and capable of temporary submersion (up to 1 meter deep for 30 minutes).
IP68: Protected against dust and suitable for continuous immersion under manufacturer-specific conditions.
If your speedometer specifies an IP66 rating or higher, it should theoretically withstand rain and washing without problems. But be aware: it's always good to check, as even with a high standard, poor installation or wear can affect its performance.
2. Preparations Before Testing
Before starting any test, ensure the following:
Check the installation: If the speedometer is already mounted on the motorcycle, check that the connectors and the back cover are securely fastened. Many leaks don't occur due to failures in the instrument itself, but because water seeps through the cables due to the absence of heat-shrink tubing or sealed connectors.
Disconnect the battery: If you're going to perform more in-depth tests (such as submerging the device), it's preferable to remove it from the motorcycle and disconnect it from the power source to avoid a short circuit.
Required tools:
A spray bottle or a pressure washer (with pressure regulator).
A clean, dry cloth.
(Optional) A clear container with water (for immersion tests).
3. Method 1: Visual and Structural Inspection (The Most Basic)
This is the initial examination, requires no tools, and is perfect for a quick check.
Steps:
Check the housing joints: Observe the joint between the front frame and the back. Is there any obvious gap or burr?
Examine the buttons and connectors: Check that the buttons don't have excessive play and that the cable entry has a rubber plug or sealing ring.
Inspect the lens or crystal: Look for signs of adhesive detachment, cracks, or bubbles between the lens and the housing.
Diagnosis: If the structure is in good condition, the speedometer has a solid foundation. If you see obvious gaps or missing sealing parts, the waterproofing will be poor.
4. Method 2: Paper Test (Rain Simulation)
This method simulates rain or low-pressure washing. It's safe and suitable for most users.
Steps:
Place a small piece of dry paper or folded napkin in the rear area of the speedometer, right where the cables enter. If it's mounted, tuck it between the bracket and the dashboard.

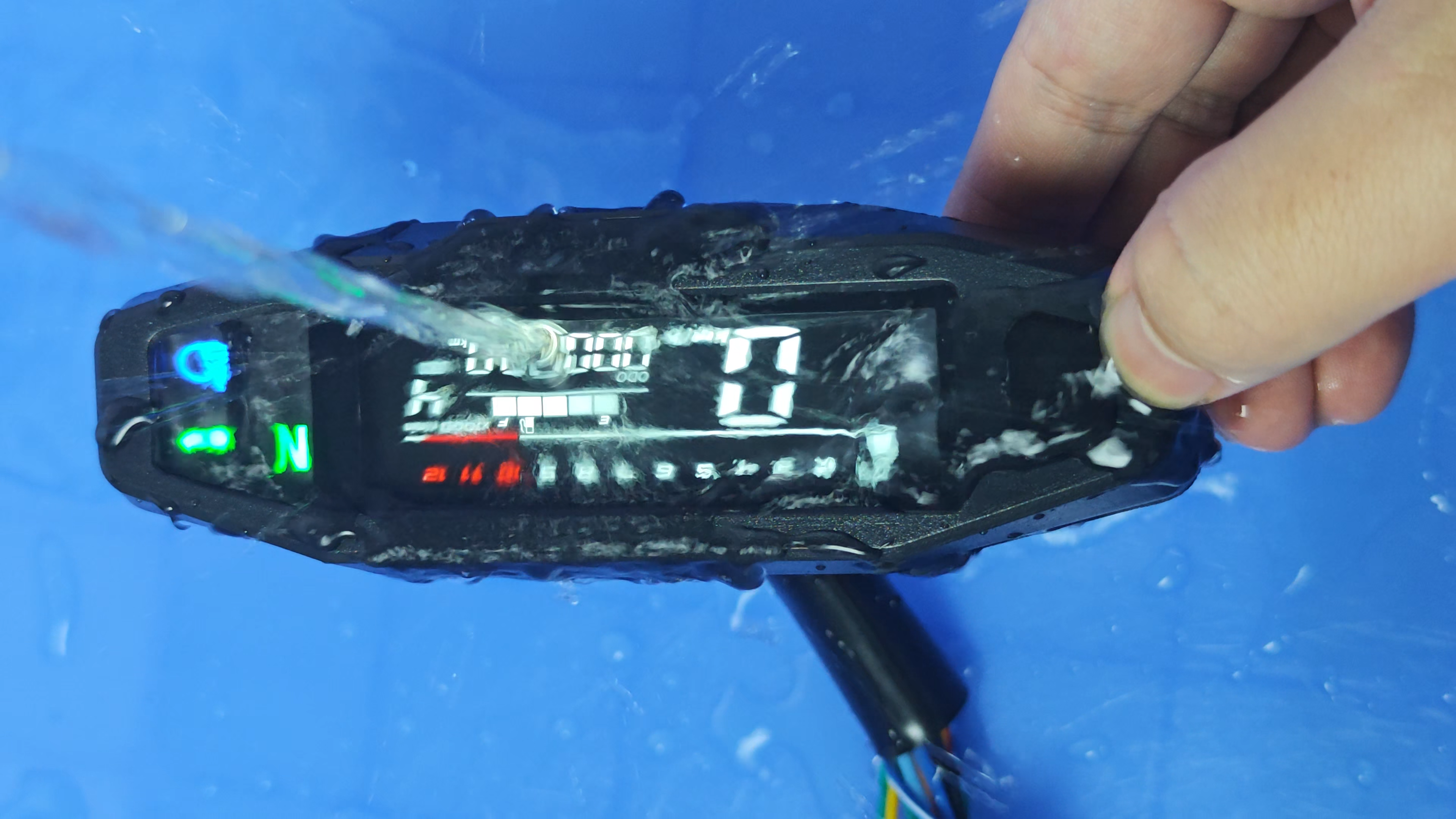

Using the spray bottle or pressure washer on low-pressure, diffused spray mode, spray the speedometer from various angles: front, side, and diagonally upwards.
Maintain the spray for 1 to 2 minutes.
Stop and carefully remove the paper. Observe it.
Diagnosis:
Passed: The paper is dry or only slightly damp.
Failed: The paper is visibly wet. This indicates that water has penetrated the housing or the connector area.
5. Method 3: Air Tightness Test (For the More Demanding)
If you want a more rigorous diagnosis, either to check your inventory as a merchant or to ensure reliability before a long trip, this is the professional option. It's the same method used by factories.
Principle: It involves injecting a small amount of pressurized air inside the speedometer and monitoring if the pressure remains stable. If there's a minimal leak, the pressure will drop.
How is it done?
You'll need a portable leak tester (basic versions can be rented or bought online).
Seal any ventilation holes (if present) and place the speedometer in an accessory connected to the tester.
Set the pressure and time according to the manufacturer's specifications and turn on the equipment.
Read the leak rate on the display.
Note: This method is more technical and is intended for businesses or for objectively determining the cause of a water-related failure under warranty. For a common user, it might be a bit complex.
6. Method 4: Immersion Test (With Great Care!)
This test simulates extreme conditions (IP67/IP68) and carries a high risk. It is not recommended to do it with the speedometer mounted on the motorcycle. If you decide to do it, only do it with the instrument disassembled.
Steps:
Only with the speedometer disassembled: Make sure all connectors and the back cover are securely fastened according to the manufacturer's instructions.
Prepare a container with clean water (do not use pressurized water or soaps).
Slowly submerge: Introduce the speedometer into the water slowly and observe if continuous bubbles appear. If you see a constant flow of bubbles, that's where the leak is.
Test at shallow depth: If you don't see bubbles, submerge it to only 5-10 cm deep and let it rest for 10-15 minutes.
Remove it, dry it very well on the outside, and check for moisture or droplets inside (for example, by looking for fogging on the lens).
Warning:
Do not perform this test if your speedometer does not specify at least IP67.
Immersion can irreversibly damage the equipment. The risk is entirely yours.
If you perform the test, make sure the interior is completely dry before reconnecting it.
7. What to Do if the Waterproofing Is Insufficient?
If after the tests you detect that your speedometer is not as water-resistant as you thought, here are some solutions:
Check and reinforce the seals:
Apply a little neutral silicone sealant to the housing joints (be careful not to obstruct buttons or vents).
For connectors, use self-vulcanizing rubber tape or heat-shrink tubing with adhesive to insulate them from water.
Change the location: If possible, reinstall the speedometer behind the windshield or in an area less exposed to direct water impact.
Replace it: If the interior already shows signs of corrosion or moisture, the repair cost can be high. Sometimes the safest option is to invest in a new speedometer with a clearly specified protection rating (such as IP67).
8. Conclusion
The waterproofing of your speedometer is key to its durability and your safety on the road. With these methods, you can know the real condition of your dashboard and act in time.
Remember: It's better to invest 10 minutes checking your speedometer than to be stranded in a storm with a damaged instrument.
If you're looking for a new speedometer that truly offers the best protection against water, check out the products in our store. Each unit undergoes rigorous waterproofing tests so you can ride with peace of mind, come rain or shine.
Do you have questions during the process? Write to us, we'll be happy to help you.
